您现在的位置>>公司首页>>主要产品>> 蜂 鸣 器 SHS-1201E

外观图 Appearance

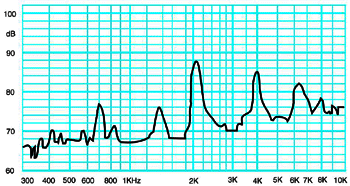

频响曲线 Typical Frequency Response Curve


技术特性 Specifications

MODEL NO SHS-1201E
DIMENSIONAL 12.0×5.4mm
RATED VOLTAGE                  (VDC) 1.5
CURRENT CONSUMPTION            (mA) MAX.35
DIRECT CURRENT RESISTANCE      (Ohm) 16±15%
RESONANT FREQUENCY             (Hz) 2048
SOUND PRESSURE LEVEL         (10cm/dB) MIN.70
OPERATING TEMPERATURE          (℃) -20-+60
STORAGE TEMPERATURE            (℃) -30-+70
WEIGHT                         (g) 2.0
TERMINAL TWO PIN LEAD TYPE

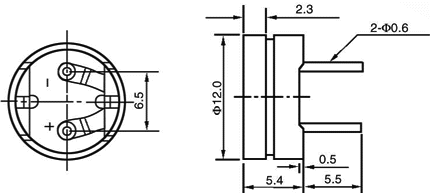

尺寸图 Dimensional Drawing  (Tolerance:±0.5mm  Unit:mm)
