您现在的位置>>公司首页>>产品总览>> 蜂 鸣 器 SHS-0901A SHS-0903A SHS-0905A

外观图 Appearance

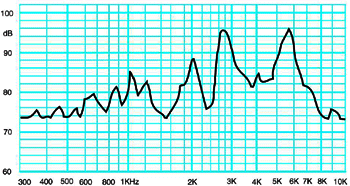

频响曲线 Typical Frequency Response Curve


技术特性 Specifications

MODEL NO SHS-0901A SHS-0903A SHS-0905A
DIMENSIONAL 9.0×4.5mm
RATED VOLTAGE                  (VDC) 1.5 3.0 5.0
CURRENT CONSUMPTION            (mA) MAX.80 MAX.80 MAX.70
DIRECT CURRENT RESISTANCE      (Ohm) 6±15% 15±15% 30±15%
RESONANT FREQUENCY             (Hz) 2731
SOUND PRESSURE LEVEL         (10cm/dB) MIN.85
OPERATING TEMPERATURE          (℃) -20-+60
STORAGE TEMPERATURE            (℃) -30-+70
WEIGHT                         (g) 0.8
TERMINAL TWO PIN LEAD TYPE

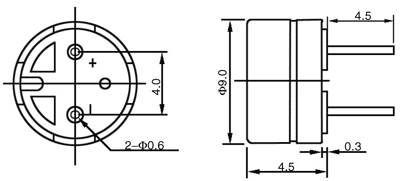

尺寸图 Dimensional Drawing  (Tolerance:±0.5mm  Unit:mm)
