您现在的位置>>公司首页>>产品总览>> 蜂 鸣 器 SHS-1201-16N

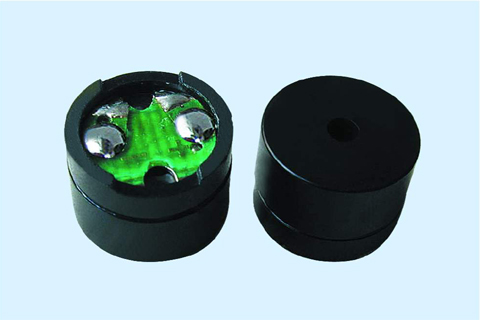

外观图 Appearance

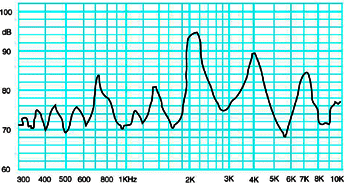

频响曲线 Typical Frequency Response Curve


技术特性 Specifications

MODEL NO SHS-1201-16N
DIMENSIONAL 12.0×8.5mm
RATED VOLTAGE                  (VDC) 1.5
CURRENT CONSUMPTION            (mA) MAX.40
DIRECT CURRENT RESISTANCE      (Ohm) 16±15%
RESONANT FREQUENCY             (Hz) 2048
SOUND PRESSURE LEVEL         (10cm/dB) MIN.85
OPERATING TEMPERATURE          (℃) -20-+60
STORAGE TEMPERATURE            (℃) -30-+70
WEIGHT                         (g) 2.0
TERMINAL  /

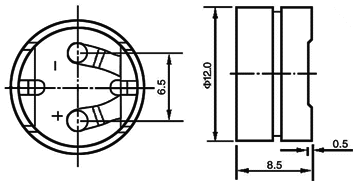

尺寸图 Dimensional Drawing  (Tolerance:±0.5mm  Unit:mm)
